These pictures are from a meteorological observation campaign conducted at Fukui (福井) airport from mid-January until the 6th of February 2003. It was a joint project of the snowfall team of the Image Information Science laboratory of Kanazawa University (the one I work in), River and Environmental Engineering lab of Tokyo University and some other meteorological research institutes. Even NASA was involved, gathering some cloud data using an airplane.
This is a non-scientific viewpoint of the events, presenting some photos that might be interesting for the occasional reader. If you want to get more information about the actual project and research methods, don't hesitate to contact me and I can at least point you to right people if I don't know the answer myself.

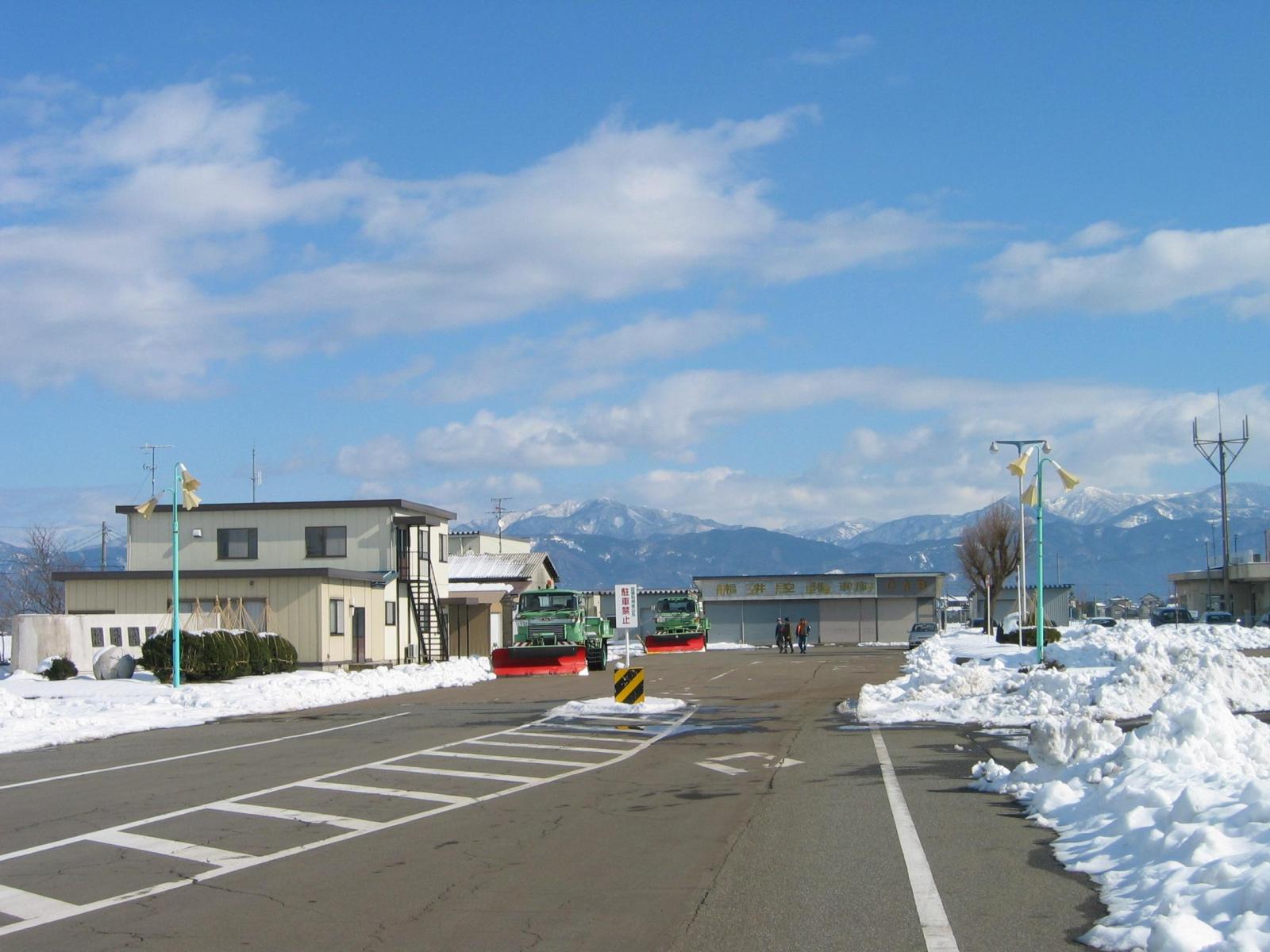

Overview of the site - a typical small airport I guess.
800x600 (51 kB)
1600x1200 (167 kB)

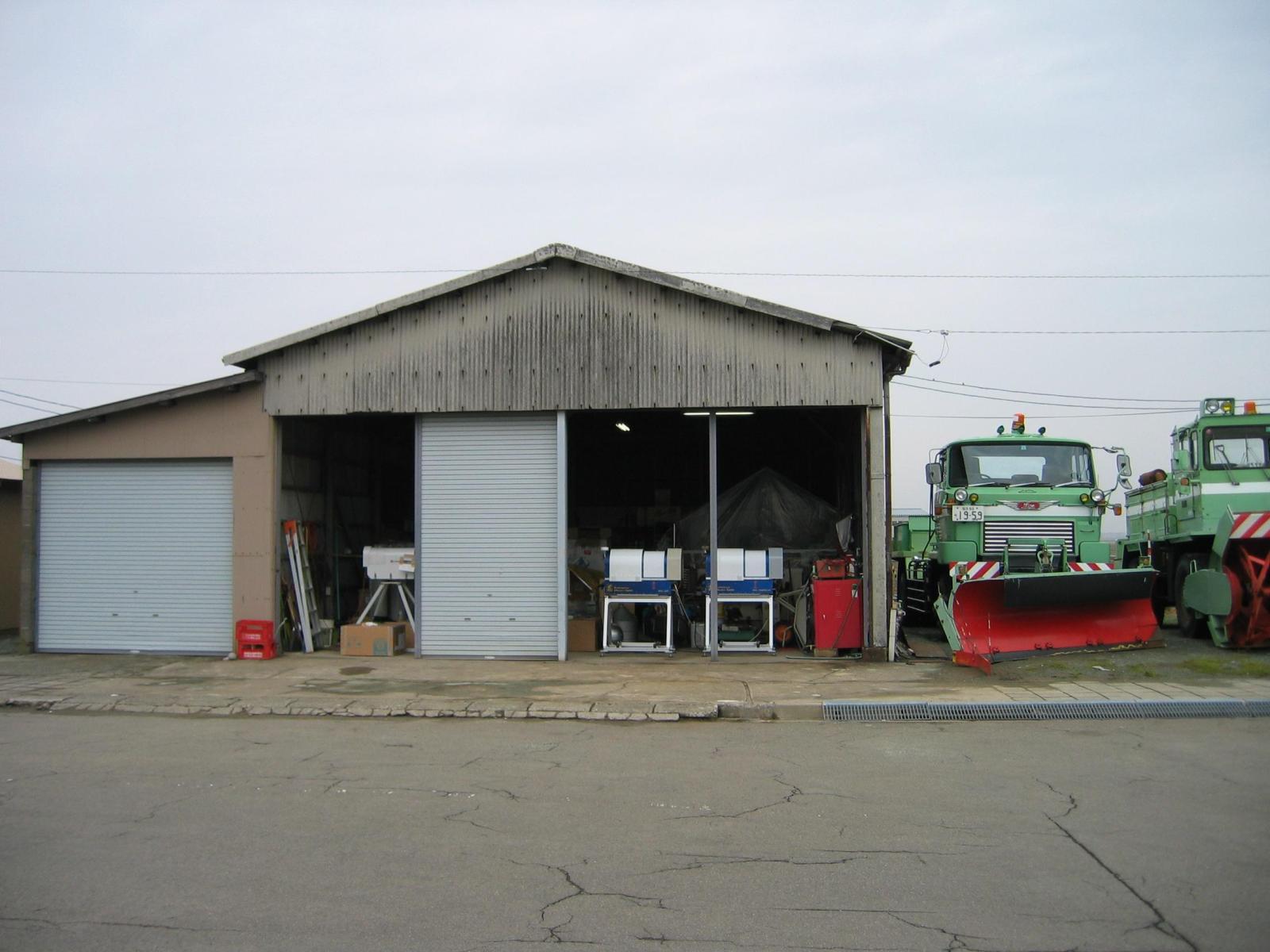

This garage was our base, equipped with luxury items such as a separate heated space, a tv and a horde of laptops to play with.
800x600 (44 kB)
1600x1200 (153 kB)
The truck with all the equipment arrived - the work begins.
800x600 (68 kB)
1600x1200 (208 kB)

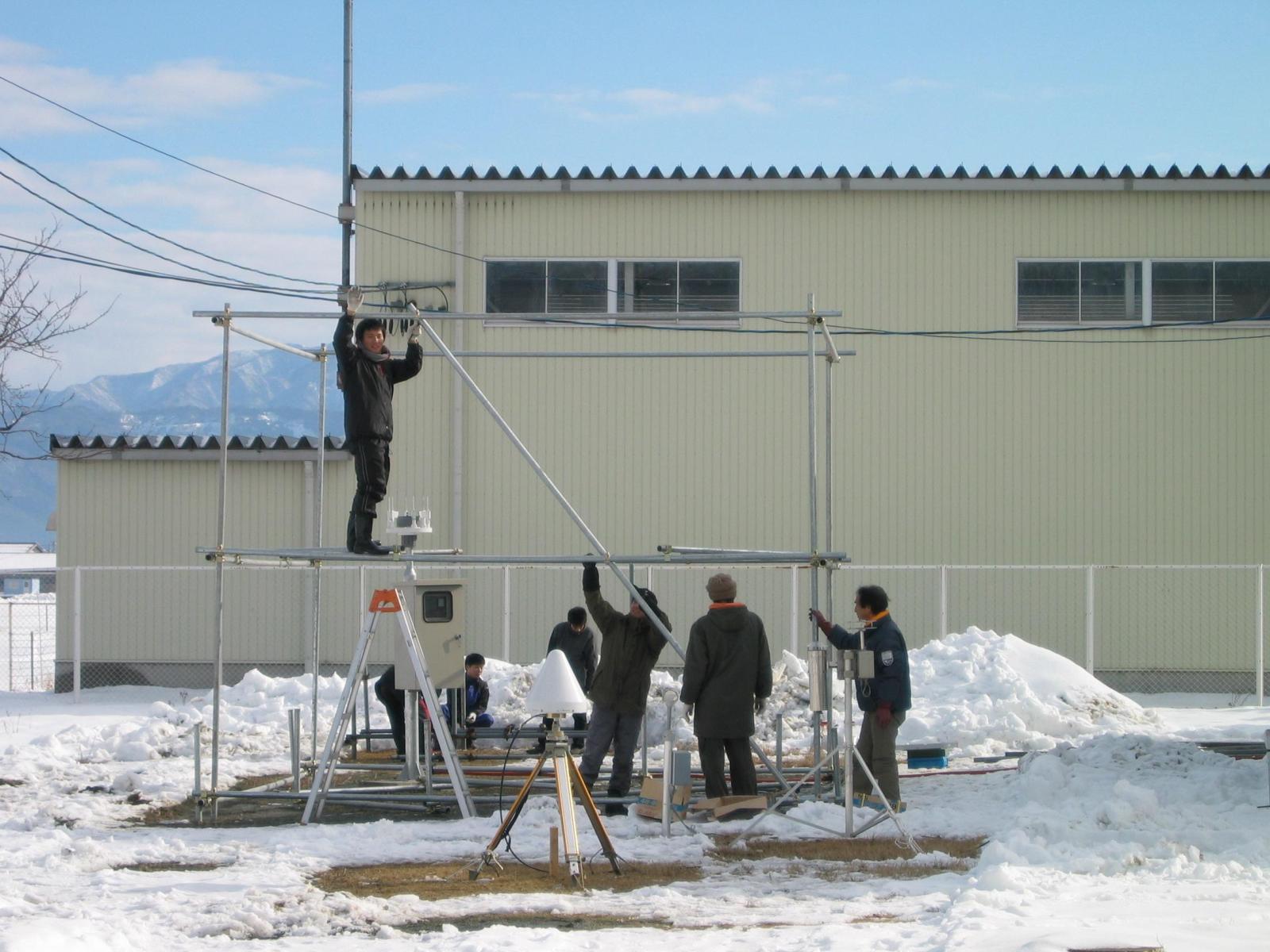

Building the frame for the video observation space.
800x600 (60 kB)
1600x1200 (196 kB)

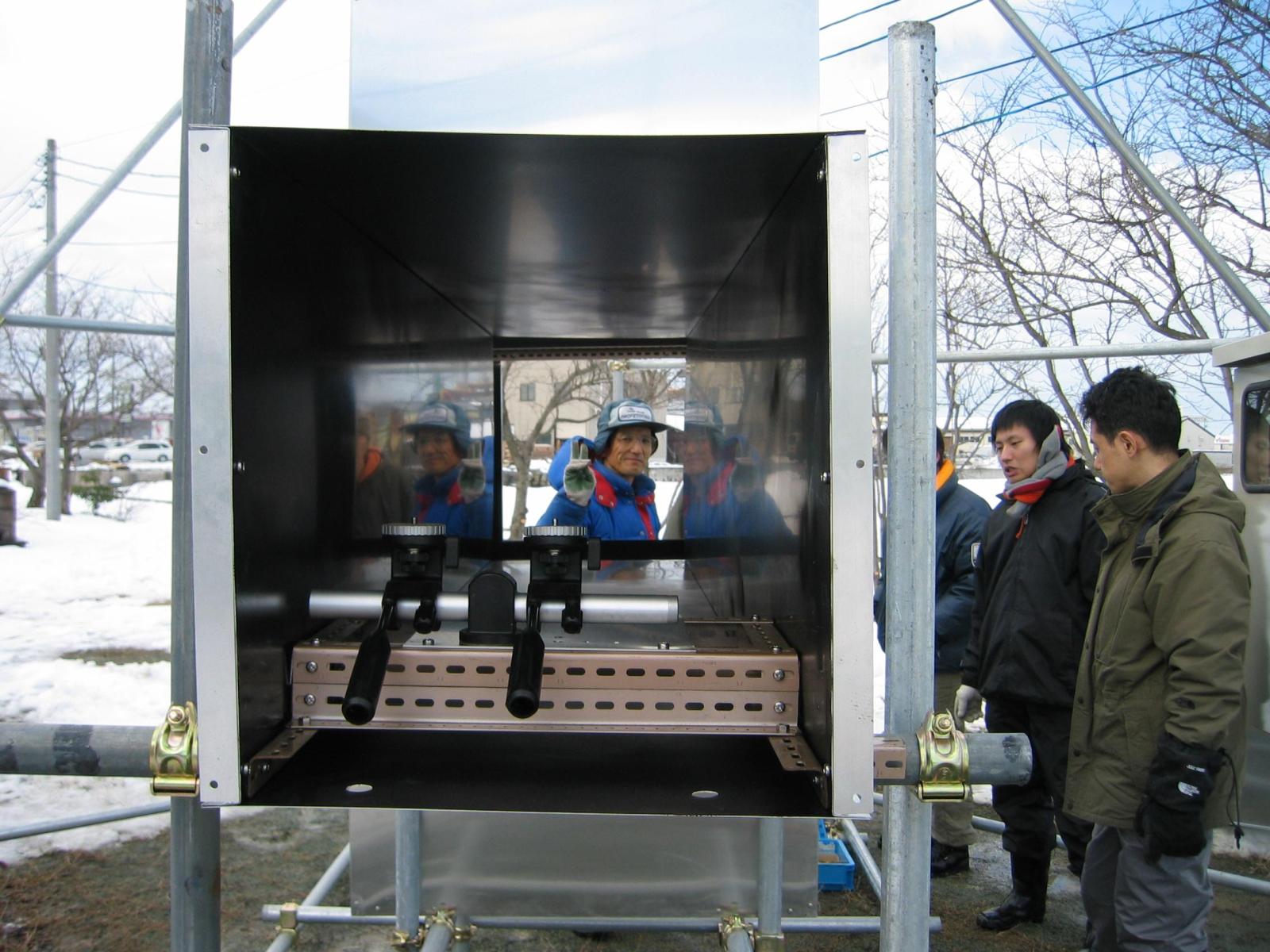

Camera mounts in the observation tunnel, professor Muramoto (村本先生）at the other end.
800x600 (71 kB)
1600x1200 (215 kB)

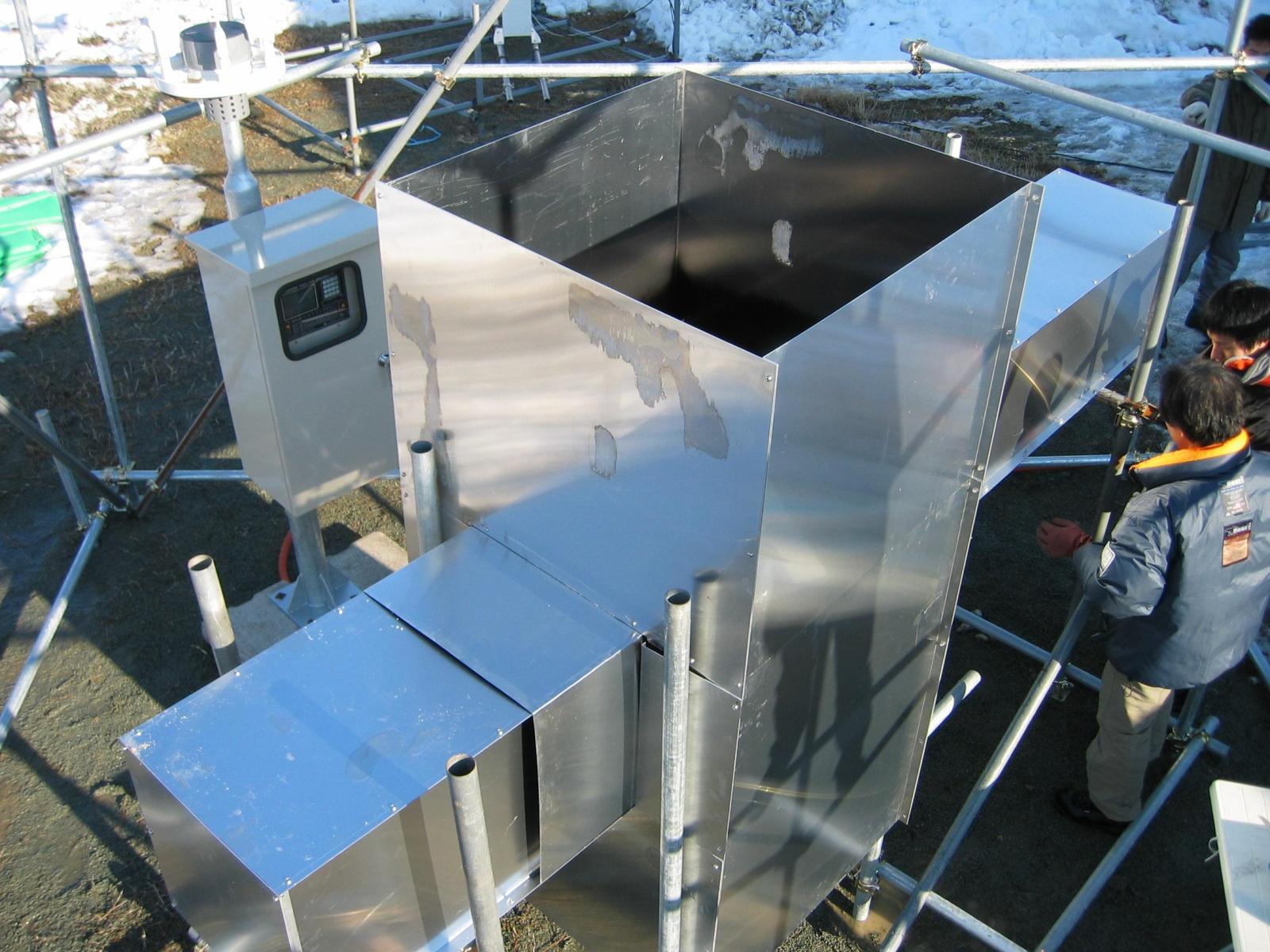

Tower from above, snow goes in the pipe and ends up on video in a narrow illuminated gap inside.
800x600 (72 kB)
1600x1200 (224 kB)

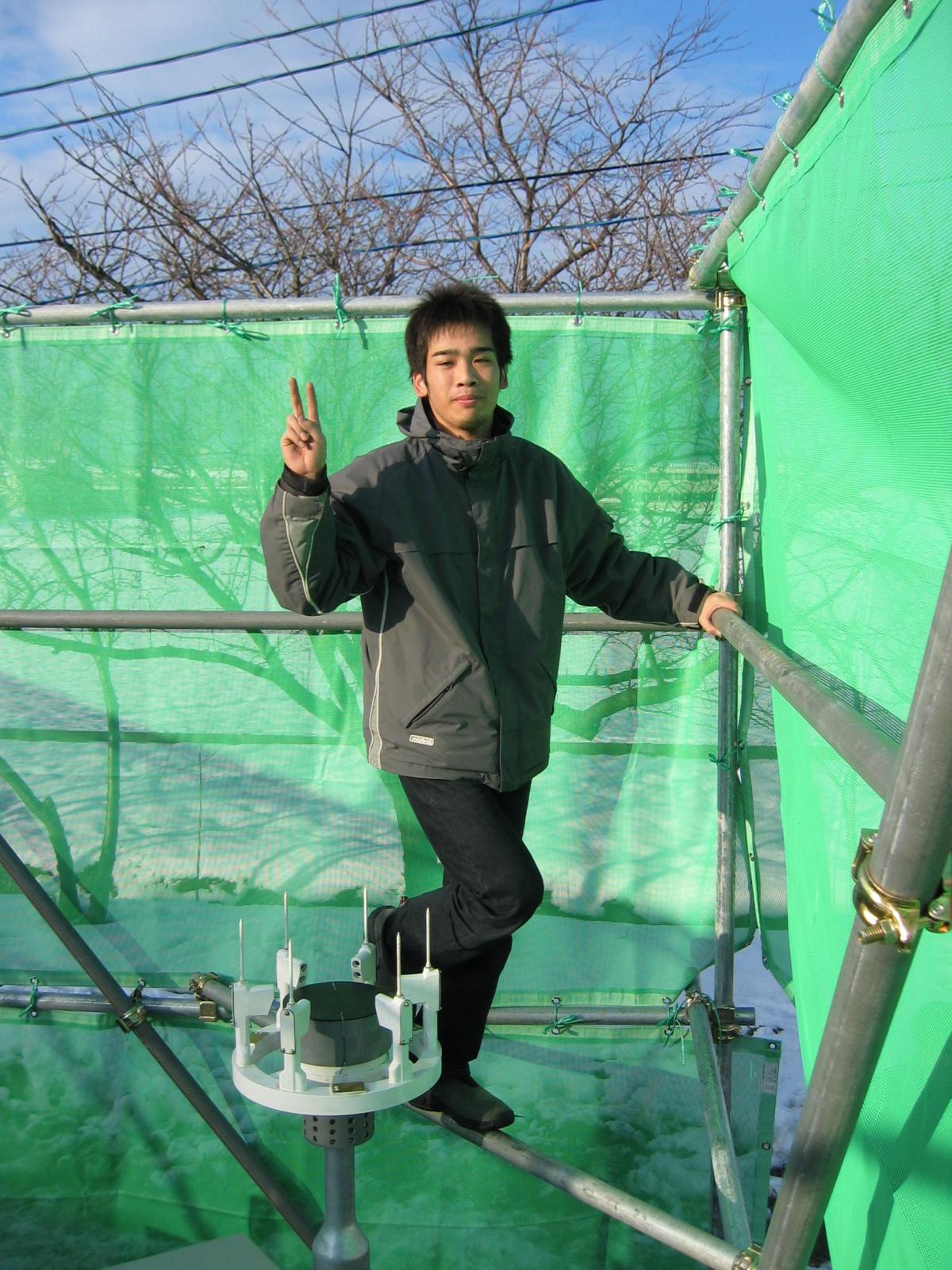

Kanda (神田さん）setting up the wind breaker net.
600x800 (81 kB)
1200x1600 (270 kB)

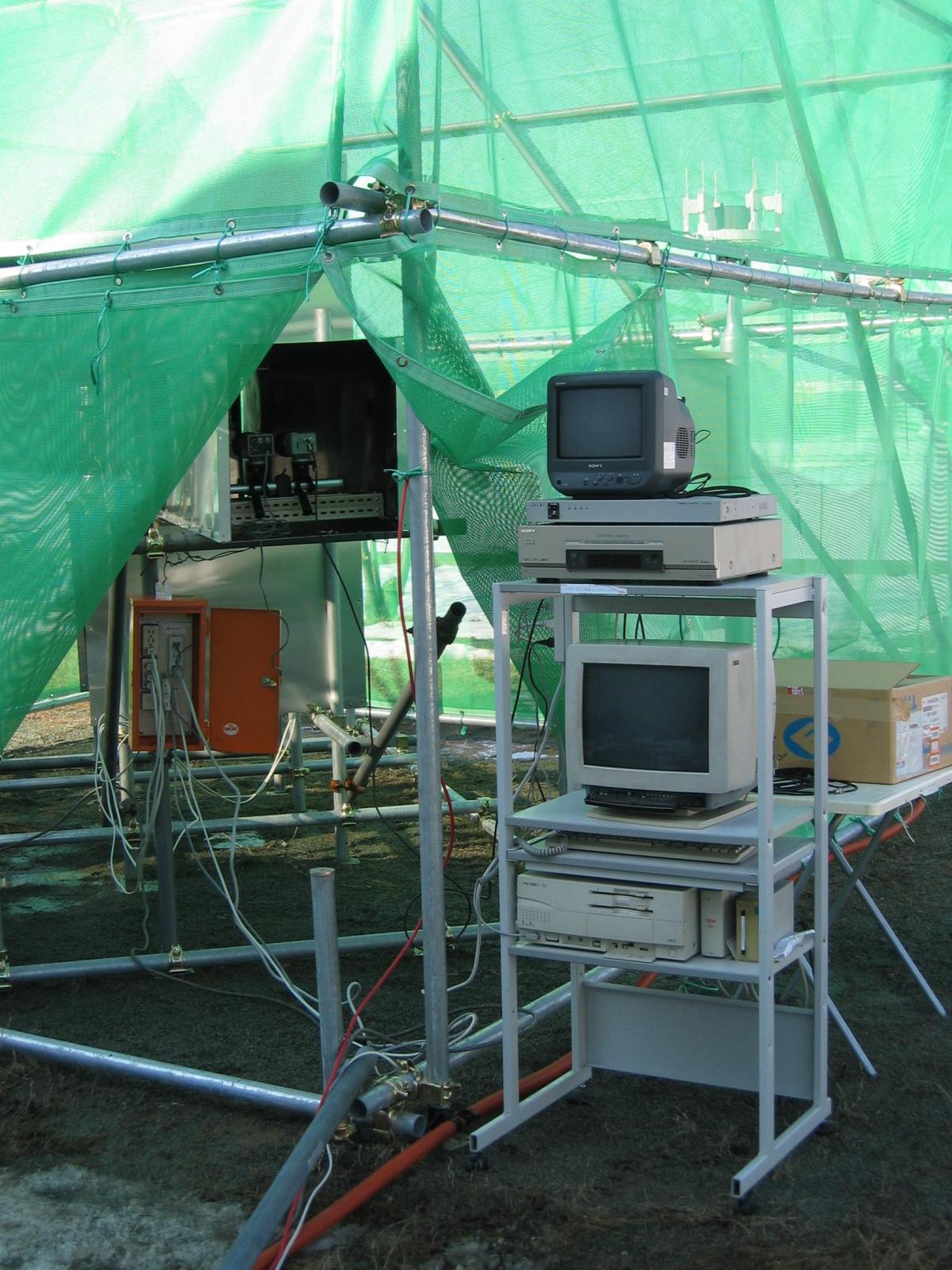

Calibrating the video cameras.
600x800 (76 kB)
1200x1600 (266 kB)

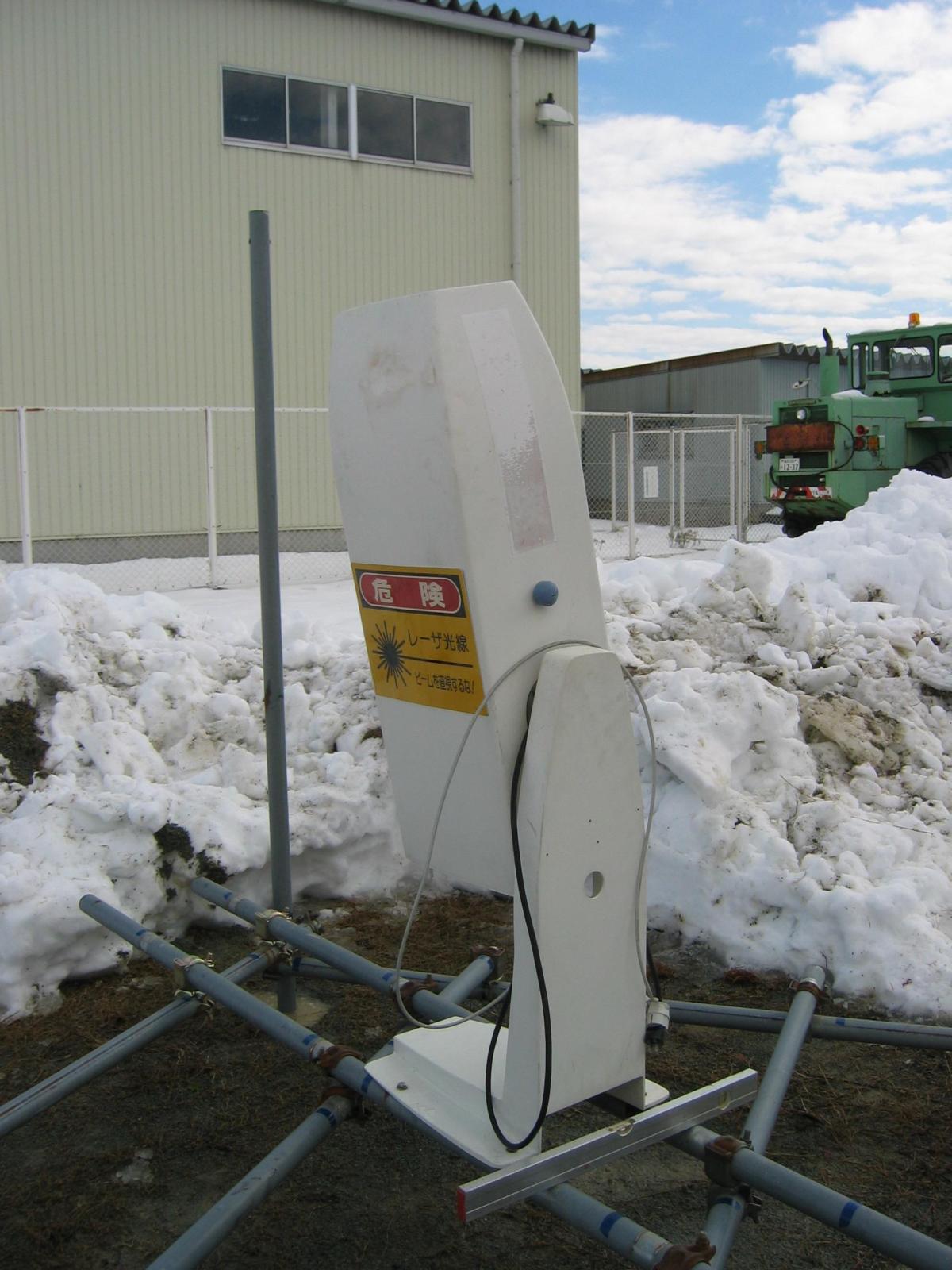

Ceilometer shooting infrared light up the sky and looking if it sees any clouds.
600x800 (58 kB)
1200x1600 (190 kB)

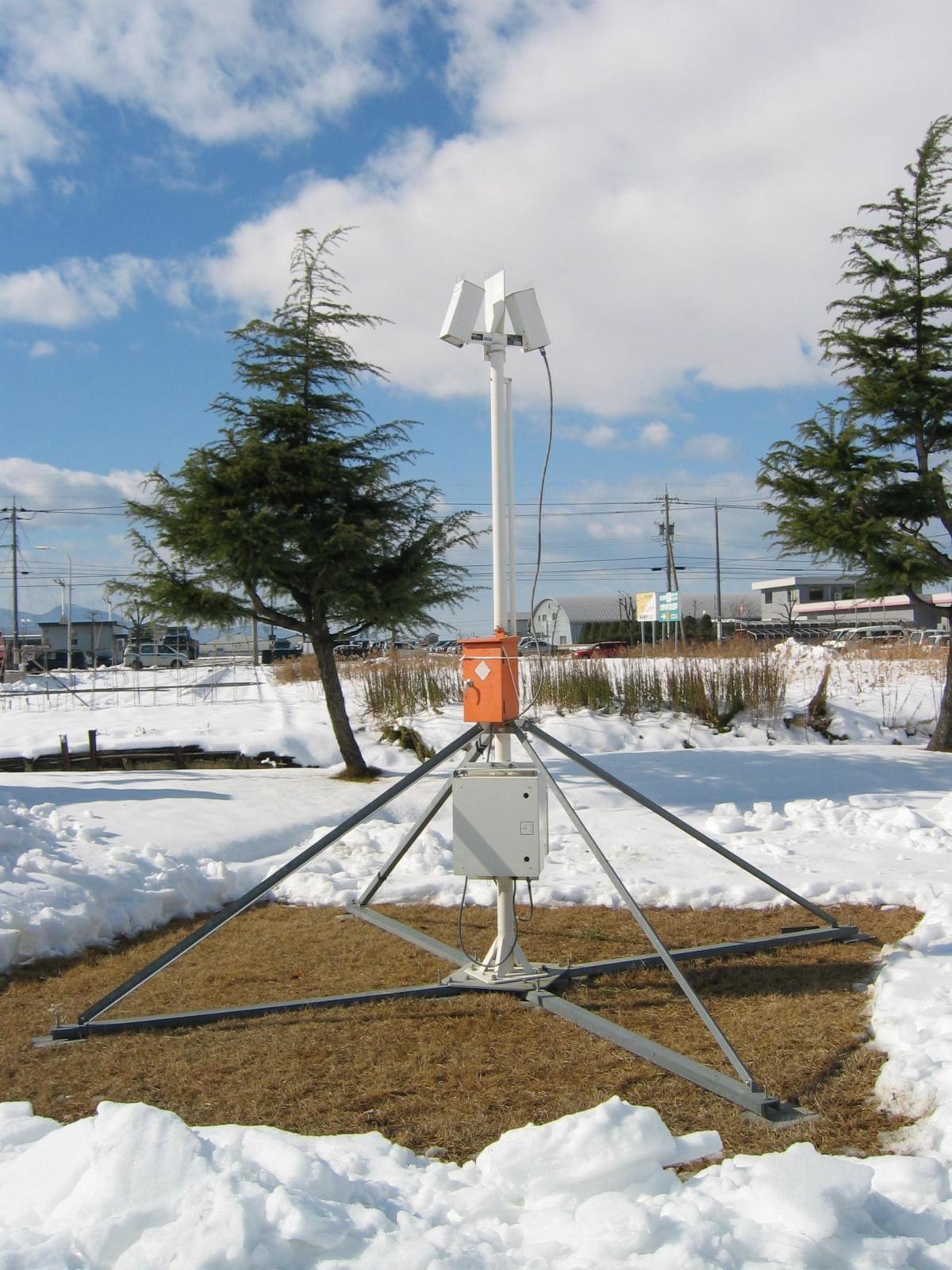

POSS - Precipitation Occurrence Sensor System (very short range radar).
600x800 (76 kB)
1200x1600 (247 kB)
Half of the restaurants in the area seemed to be "tonkatsu" (pork cutlet) shops: this was the best one we found.
800x600 (72 kB)
1600x1200 (224 kB)
Nights were spent in the Fukui University guest house - at least most of them. Snowfall time was busy.
600x800 (54 kB)
1200x1600 (200 kB)

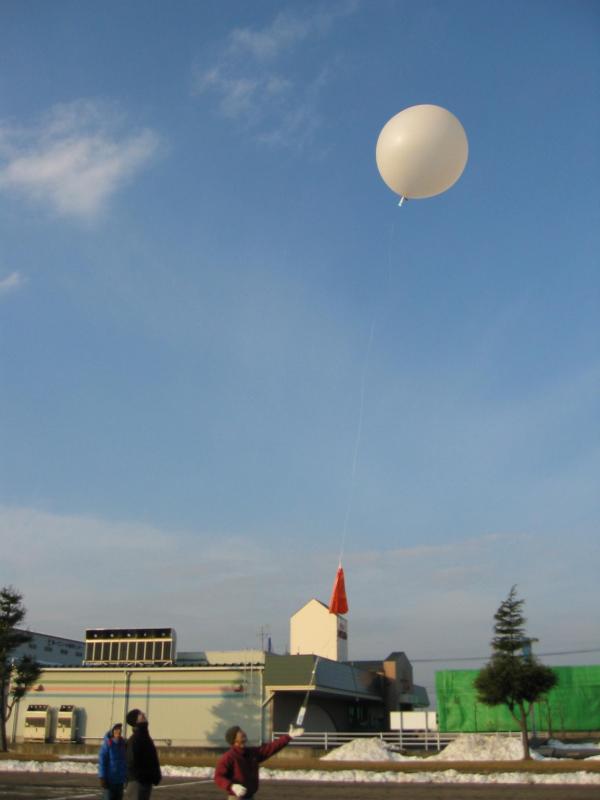

Launching the first radiosonde (4 launches per day, Tokyo University Group).
600x800 (27 kB)
1200x1600 (91 kB)
Following the sonde flight at the terminal.
800x600 (69 kB)
1600x1200 (211 kB)
Fujii (藤井さん) happy at 5 am after figuring out the reason for some lost sondes: faulty cable.
600x800 (48 kB)
1200x1600 (150 kB)

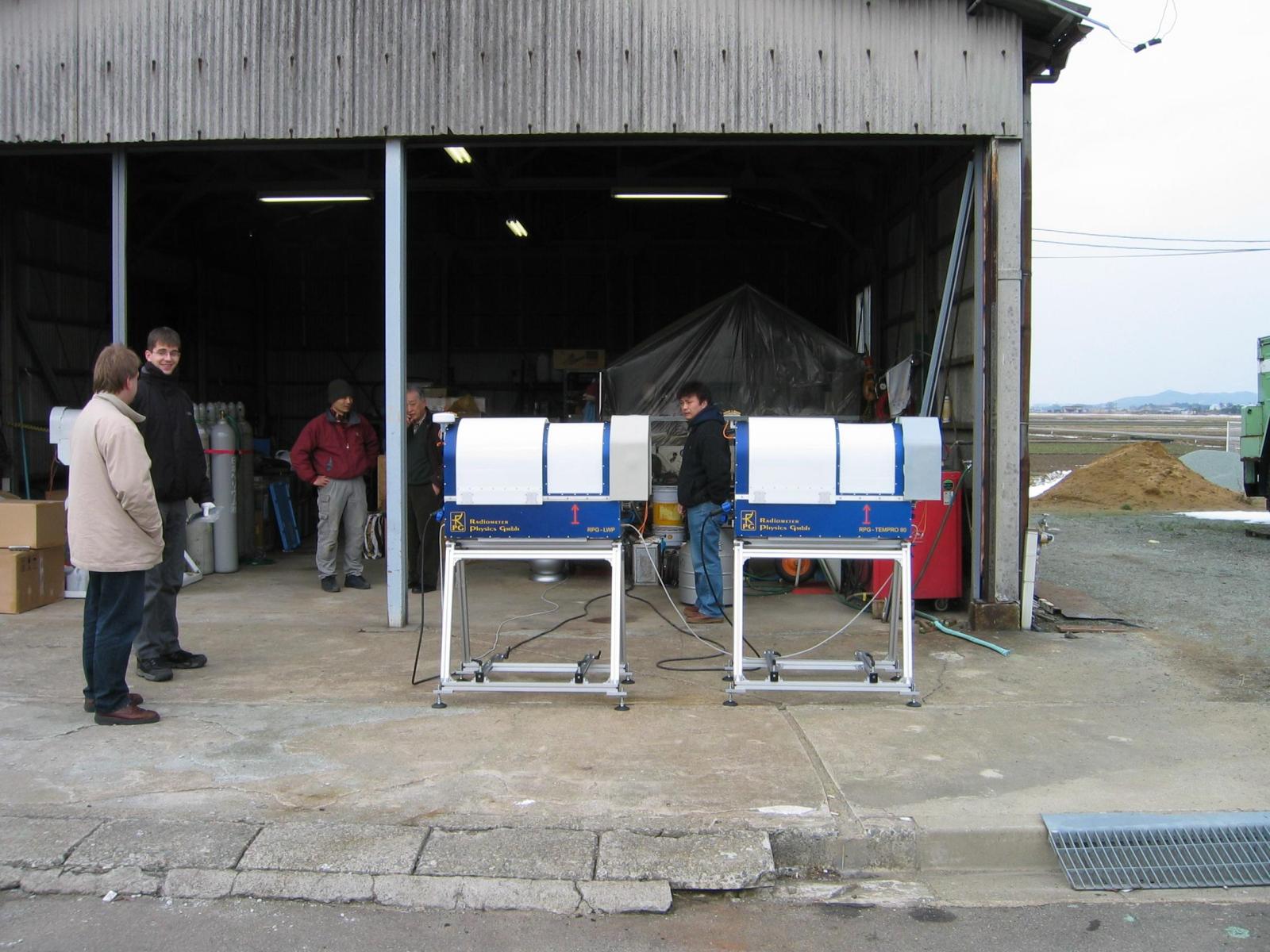

Radiometers: cool (and expensive) toys measuring temperature, humidity and liquid water content profiles from natural radiation.
800x600 (66 kB)
1600x1200 (229 kB)
Thomas Pfaff from Tokyo University got a good idea to hang sonde printouts on the wall.
800x600 (62 kB)
1600x1200 (195 kB)

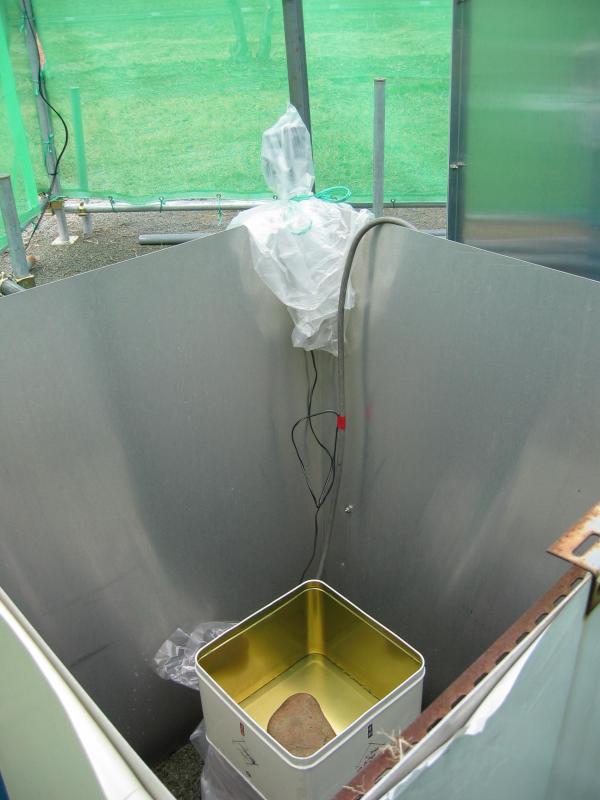

This balance should have given us the snowfall rate, but due to strong wind most snow never got in.
600x800 (47 kB)
1200x1600 (164 kB)

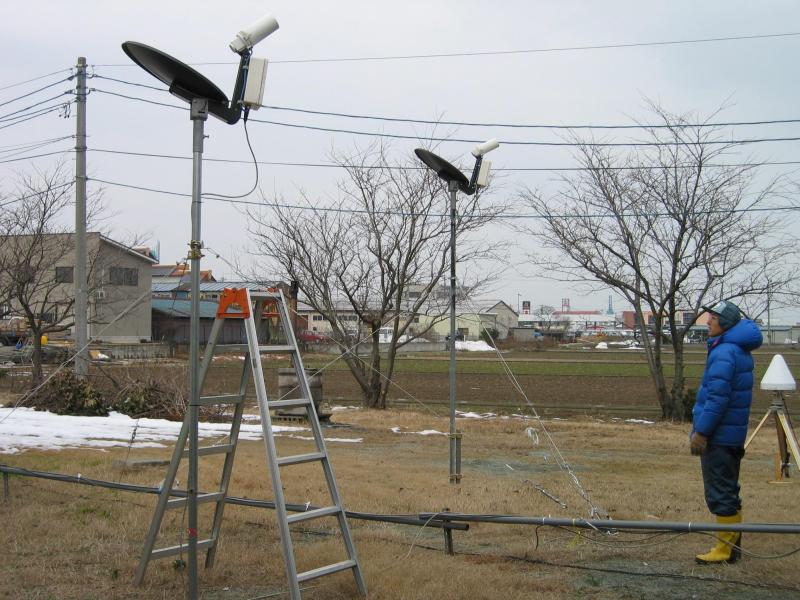

Two MRR-2 radars set up for comparison (only one used at a time). Loads of problems with these...
800x600 (87 kB)
1600x1200 (302 kB)

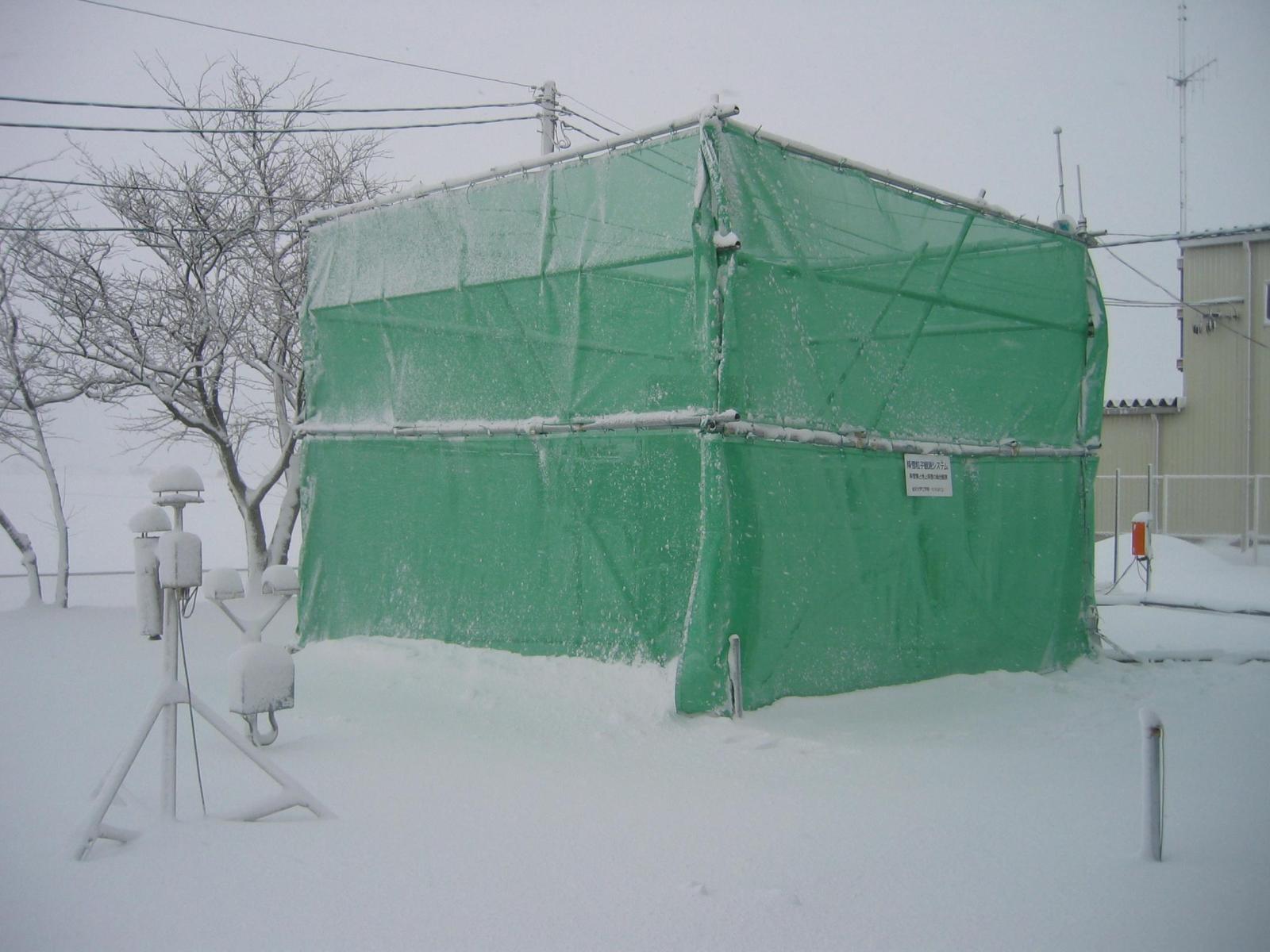

After two weeks of mostly clear weather and rain we got a good deal of snow too.
800x600 (44 kB)
1600x1200 (159 kB)
However, there was still plenty of time to play with the camera at night...
800x600 (73 kB)
1600x1200 (218 kB)

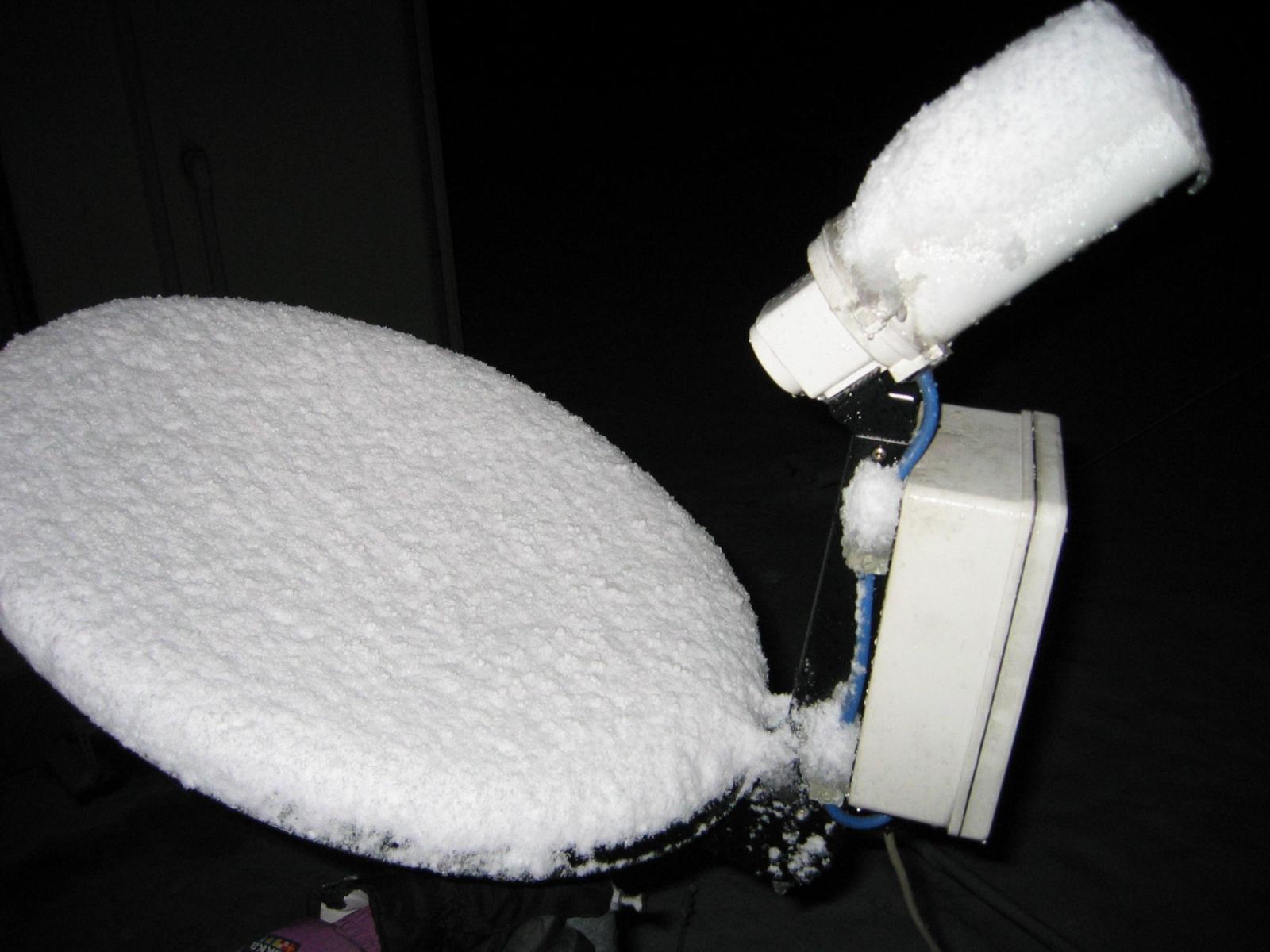

MRR dish after ignoring it for a bit too long. Maybe the optional heater would be a good idea?
800x600 (38 kB)
1600x1200 (135 kB)

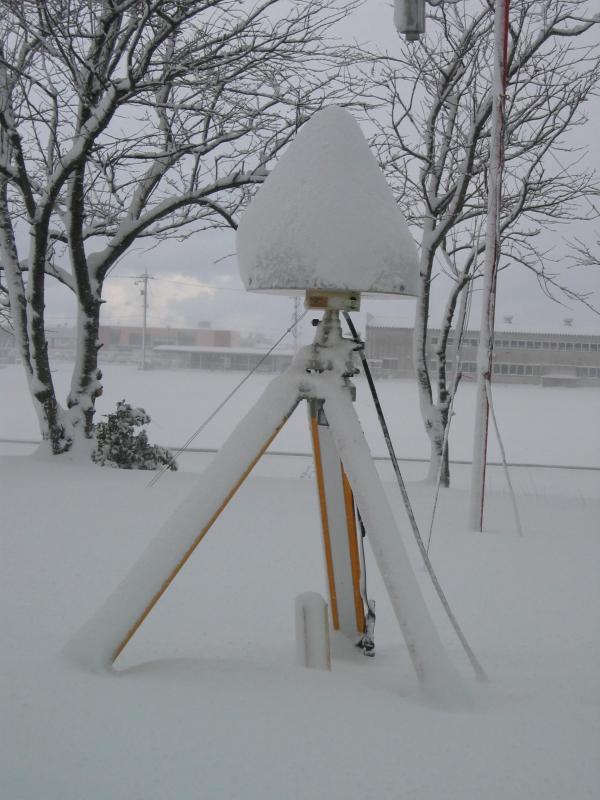

The GPS clock also gathered a nice snowcap.
600x800 (61 kB)
1200x1600 (194 kB)

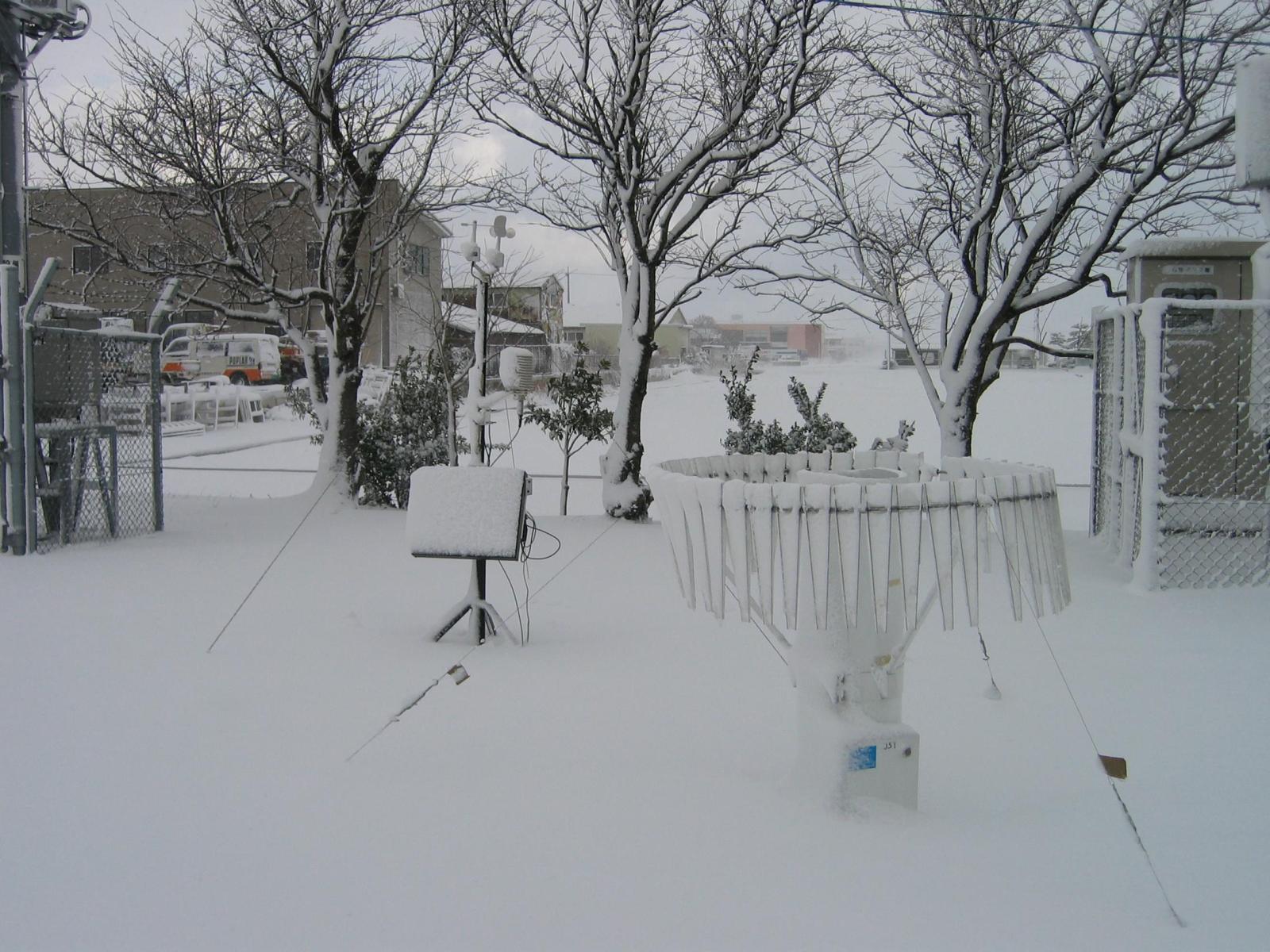

Weatherstation and rain/snow gauge. Umm - what does the solar panel data say?
800x600 (74 kB)
1600x1200 (253 kB)
